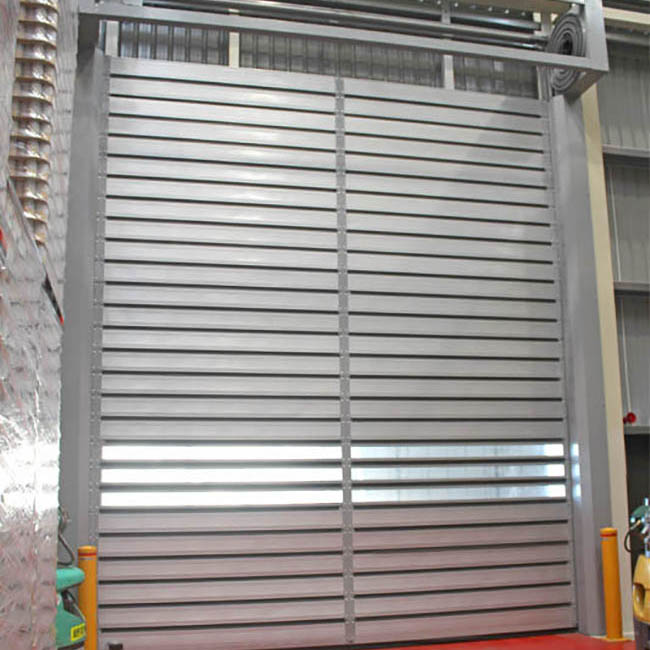

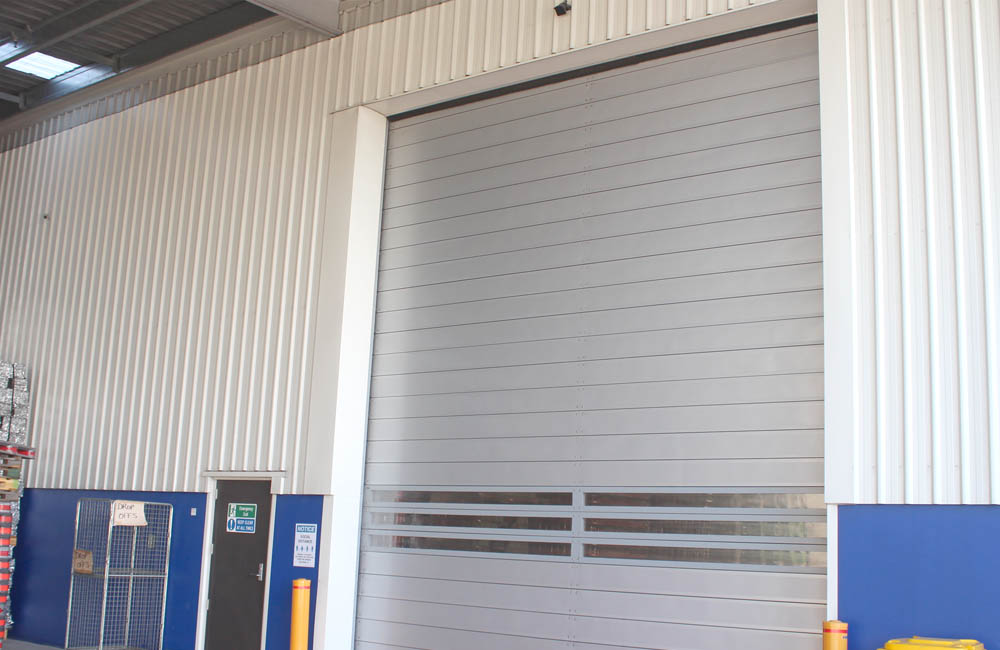

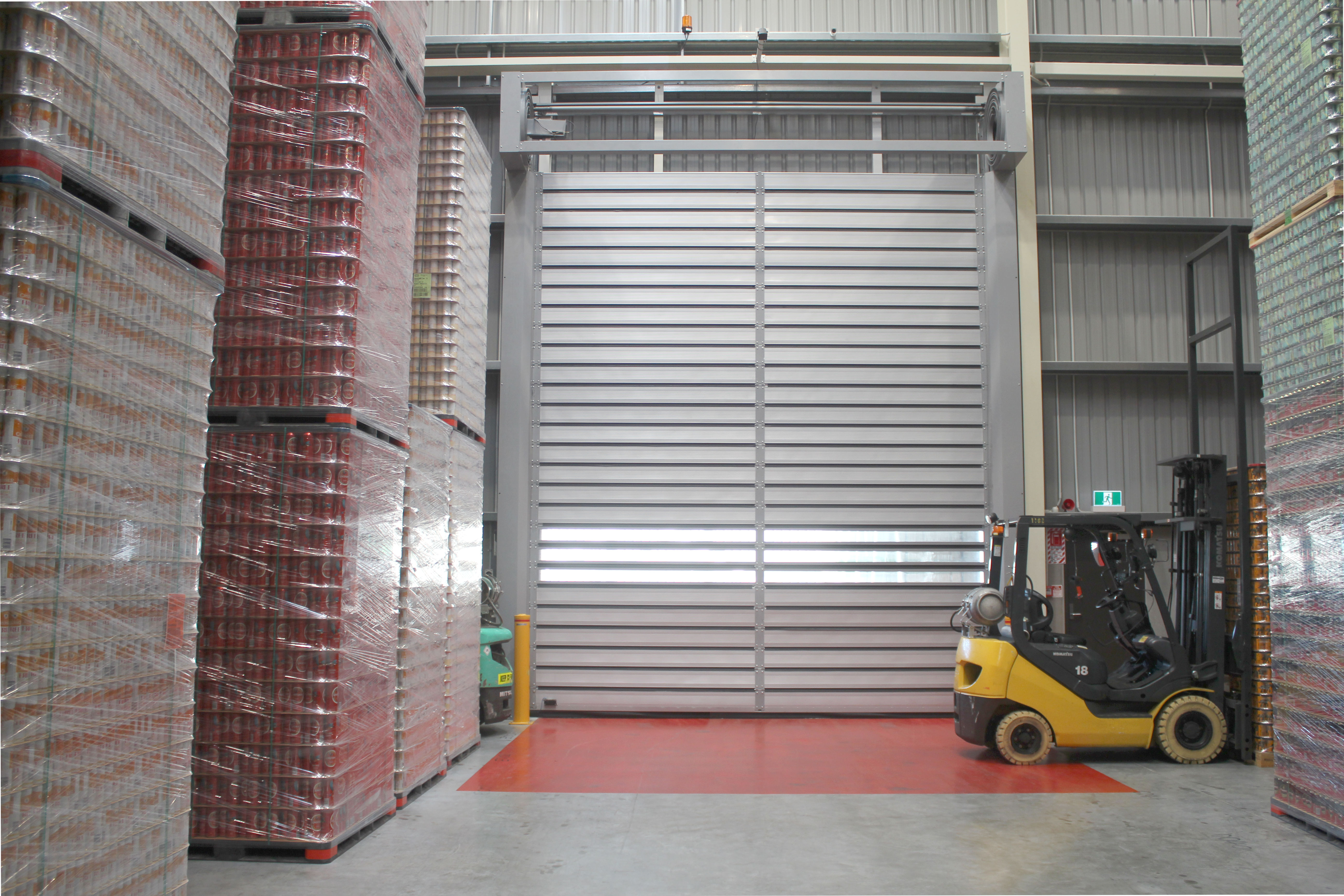

SpiraDoor - The Industrial
Door of Now

Insulated, fast and secure, one door for all

A clean appearance

No contact between the spiral and door panel

Improved longevity

  • Available Colors:

Gallery

Tech Specs & Resources

About

SpiraDoor

The SpiraDoor doesn’t do anything by halves. From up to 120km/ph wind loading, to photoelectric sensors, variable speed control and thermal insulation, its purposeful features and technology, ensure safety, precision and durability for the long haul.

Download our Catalogue

Be updated with our latest products, promotions and more. Enter your name and email below to receive our latest catalogue.

AlumaView 175/200/300

UTM Parameters

Tech Specs

Application Internal / External
Slats Material: Polyurethene Slat
Size* Maximum Width: 6500’
Motorisation Motor: Single Phase / 3 Phase Motor Drive
Speed Maximum Opening Speed: 2.5m/sec
Standard Operational Included Safety: Multiple Horizontal Infrared Photoeyes
Colour Standard: Silver (RAL 9006) or White (RAL 9010)
Counter Weight Systems: Spring and Chain Balancing
Wind Loading Up to: Class 12 (120 kmph)
Extra Add Ons (Optional) Safety: Widescan LZR Radar with Warning Lights
Thermal Insulation K≤l 5W/(m²·K)
* For larger size doors please inquire

Resources

Cad Drawings

Brochure

Enquiries

Spec Sheet

Order Form

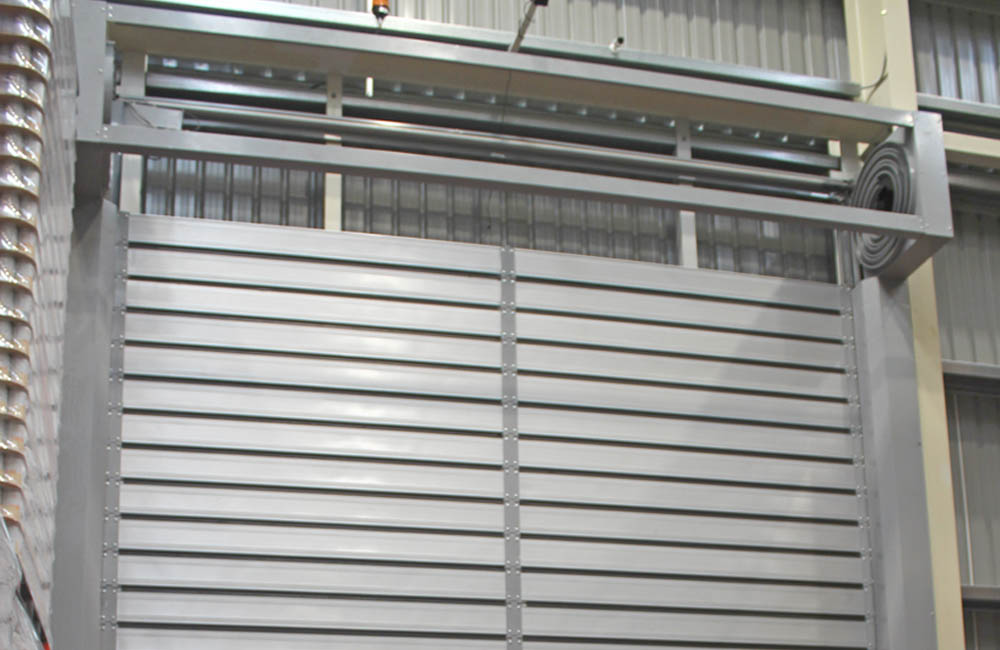

Panel it out

SpiraDoor utilises a split assembly structure, composed of broken aluminium alloy door panels. Panelling incorporates multi-layer sealing strips, nylon guide wheels and hinges to aid load bearing. An extended flexible seal closes the gap between door and ground. The 43mm
aluminium alloy thermal insulation door panel features an anodised and coloured surface. Wind load resistance can reach Force 12, Class 3 (120kmph). Slats available in White (RAL 9010) or Silver (RAL9006), with a three-vision panel option.

Stay on track

SpiraDoor tracks are crafted from 2.5mm bent galvanised steel, and equipped with tension spring balancing and a chain transmission system for smooth operation. High-quality aluminium allows guide wheel tracks to keep noise to a minimum and enhance durability. The side features include sealing strips for effective dust screening, cold air isolation and pest control. Doors include a brake release handle for emergency opening.

All systems go

The SpiraDoor’s standard electronic control system encompasses a servo motor and control box, with right or left side door location. An optional upgrade to SEW Eurodrive (German) heavy duty motor is ideal for large, heavy doors and higher use applications. The control box features an easy-operate display screen, providing current status information and ll-important technical parameters. It’s also compatible with any external electric device – radars, loops, remotes, sensors, and safety systems – light curtain, flashing lights and traffic lights, and in-keeping with other door control systems – airlock/ interlock. Additionally, the system stores all operational and maintenance data.

Safety does it

Infrared safety protection sensors – multiple horizontal infrared photoeyes within the door frame. A wireless safety edge system affords safer operations..

  • The door remains open when an obstacle is underneath.
  • When an object passes a clear opening, the door moves to open position and closes when obstacle free.
  • If the door closes on an object, it immediately stops and reverts back to opening position, protecting the object beneath it.

Other Related Products

KASON 56 SERIES SAFEGUARD LATCH

$377.87

Kason 56 Series Safeguard Latch.

The iconic original Kason heavy duty Safeguard latch body with 316 grade stainless steel handle.

  • Bolt-type tongue provides positive locking action.
  • Proven, heavy-duty construction outlasts similar latches in hard commercial use.
  • Adjustable Strike assures precise adjustment (sold separately)
  • Padlocking provision standard on all models.
  • Accepts Kason Inside Release lever to prevent accidental entrapment in locked walk-ins. (sold separately)
  • Inside Release releases cylinder locked or padlocked door.
  • Unsurpassed for long life and reliability.
Color:?Chrome
Material:?High pressure die-cast zinc body with stainless steel handle
Additional Information:
Drilled & countersunk for 6mm screws.
Technical Resources:
Add to cart

THERMAL FLEX STRIP DOOR CURTAIN 1015WX2240H,2MM 100 COOL

$23.36

Our patented Thermal Flex Strip door curtains are available in 2mm thick x 100mm wide strips or 3mm thick x 150mm wide strips.

The strips are supplies with their patented cups pre-assembled for you at 2 standard lengths; 2260mm or 3000mm, simple trim to your desired length with a box knife.

Check out our installation video below to see how simple they are to install.

It is important that you choose the correct application below for your strip curtain as freezer grade material is different due to the temperature conditions.

PVC Strip Door Curtains are ideal for Temperature Retention, Pest Control, Dust Control and Noise Isolation. The Thermal Flex System is so simple and no manufacturing delay, we will dispatch your kit within 24hrs.



Additional Information:

Choose a door curtain size that best suits your door opening, try to achieve an overlap on each side of 30 – 50mm. The Thermal Flex curtain has a strong face mounted aluminium headpiece. Our PVC strips with patented fittings are effortless to install or replace. Simply set the height required and trim the strips with a sharp box knife. Stainless steel fasteners are supplied for your convenience along with screw spacers should you require your curtains to be clipped down at the end of the day. Studies show that the installation of a strip door curtain can reduce your energy costs by 9 – 15%. TIP: Purchase an extra Thermal Flex Fastener Kit and hang the curtain up on a spare wall at night to keep it clean. *** Custom made Curtains available on request ***



Technical Resources:

Add to cart

KASON 12V ENTRAPMENT&OPEN DOOR ALARM SYSTEM

$500.71

K1967-A57 Kason 12 Volt Entrapment & Open Door Alarm with Battery back-up.

Housed in weatherproof & dustproof external mounting boxes the Kason Entrapment & Door Open Alarm has an LED display that indicates that it is online in Power or Battery mode and releases sharp red and blue flashing LED lights along with a 105dB piezo siren when activated in Panic mode or releases flashing yellow LED lights & piezo siren when the Door Open Alarm is activated. The Door Open Alarm may be set to ?immediate? or has two-time delay options available, 10 minutes or 20 minutes delay.

New Features include:
– Upgraded siren with 105dB output at 3m
– Permanently illuminated inside emergency push button so it is clearly seen in the dark.
– New design features, an emergency yellow & black colour coded arm module
– Door open alarm with a magnetic sensor & mounting bracket now included. (It is optional to activate this feature)
– Suitable for Cool Rooms & Freezers to -40 degrees
– Colour-coded LED sequence for each alarm type
– Alarm operating & safety labels included.
– Option to connect to a monitored dialer system.

NOTE: The siren has been measured at 105dB at 3m in the manufacturer’s laboratory, room acoustics & size may affect dB results.

Installation is effortless with a basic ‘plug & play’ connection and the 12v system simply plugs into a 240v power point.



Technical Resources:

Add to cart

CRH TWIN LED IP65 LIGHT FITTING,1200MM

$163.90

CRH Twin 18W LED IP65 Light Fitting, 1200mm.

3060 lumens, 6000-7000K, 90-264V AC, Draws 0.48 amps.

Overall Dimensions 1250mm x 130mm x 95mm.

Color:?Grey
Material:?PVC
Additional Information:

LED units start up instantly and emit very little heat, unlike traditional fluorescent tubes. This makes them ideal for use in cool rooms & freezers as they create less work for your refrigeration plant. Long Life, Energy Efficient, Less Maintenance. The Working Temperature Range is -40? C to +50? C.

Technical Resources:
Add to cart

CRH SINGLE LED IP65 LIGHT FITTING,1200MM

$123.20
CRH Single 18W LED IP65 Light Fitting, 1200mm
1530 lumens, 6000-7000K, 90-264V AC. Draws 0.24 amps
Overall Dimensions 1250mm x 85mm x 95mm.
Color:?Grey
Material:?PVC
Additional Information:

LED units start up instantly and emit very little heat, unlike traditional fluorescent tubes. This makes them ideal for use in cool rooms & freezers as they create less work for your refrigeration plant. Long Life, Energy Efficient, Less Maintenance. The Working Temperature Range is -40? C to +50? C.

Technical Resources:
Add to cart

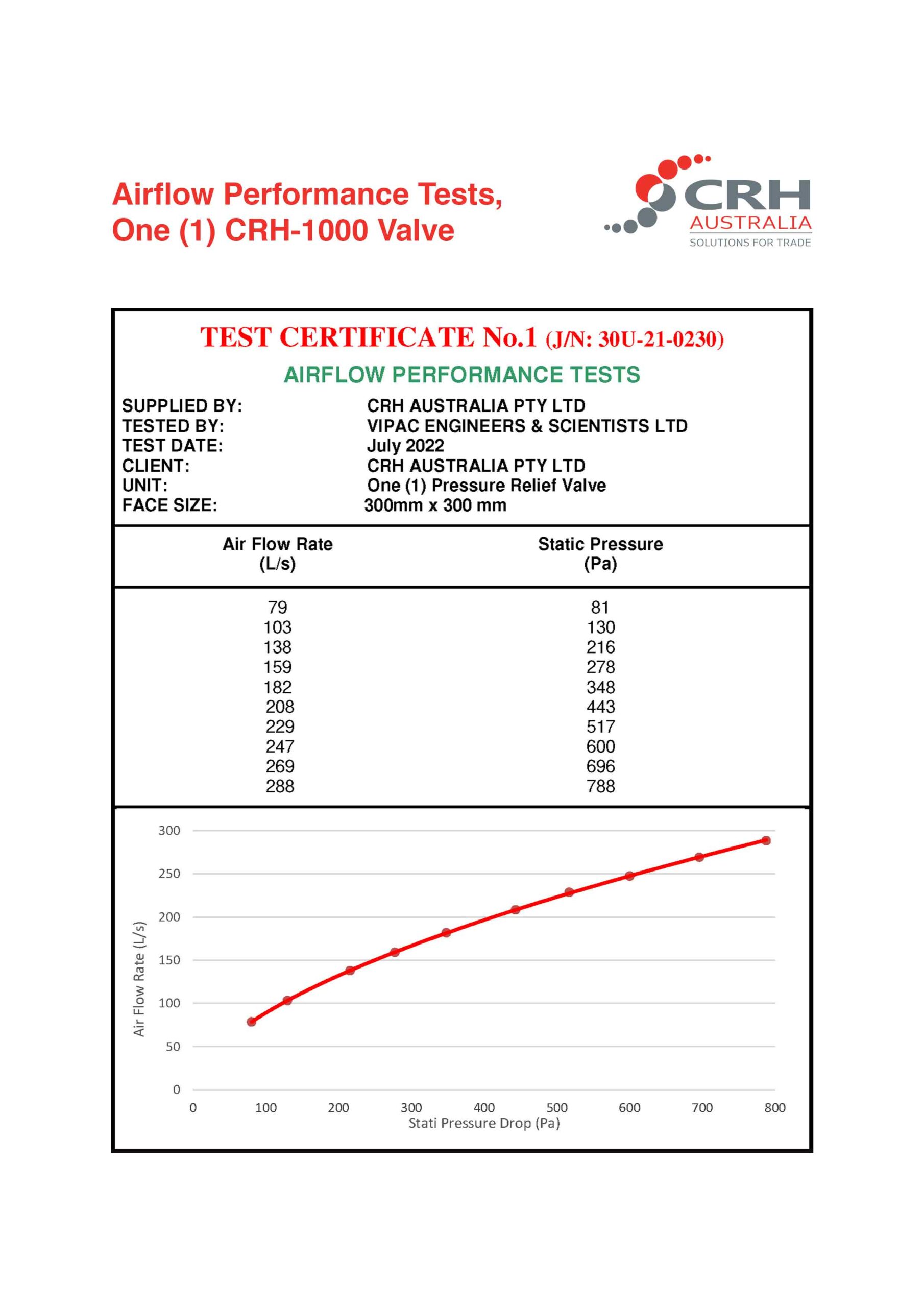

CRH PRESSURE RELIEF VALVE 300X300-200MM WALL WITH 2 VERMIN S

$562.83

The CRH-1000-200 is a heated, mechanically operated valve with 2 sealing flaps allowing airflow in either direction. The heating element is a 49W/m self regulating heater cable 240v with 0.230 AMP draw. With a 3-core neutral, active & earth facility. Supplied with 2 Vermin Screens and fixing screws.

  • Material: Polycarbonate
  • Flange Size: 300mm x 300mm
  • Cutout Size: 220mm x 220mm
  • Panel Thickness: 200mm
Additional Information:

Please note: Heaters for Pressure Relief Valves and or Door Frames must not be activated (switched on) before the room is brought down to operating temperature.

Technical Resources:
Add to cart

PRESSURE RELIEF VALVE 300X300- FOR 150MM WT WITH 2 VERMIN SCREENS

$553.12

The CRH-1000-150 is a heated, mechanically operated valve with 2 sealing ?flaps allowing airflow in either direction. The heating element is a 49W/m self regulating heater cable 240v with 0.230 AMP draw. With a 3-core neutral, active & earth facility. Supplied with 2 Vermin Screens and fixing screws.

  • Material: Polycarbonate
  • Flange Size: 300mm x 300mm
  • Cutout Size: 220mm x 220mm
  • Panel Thickness: 150mm
Additional Information:

Please Note: Heaters for Pressure Relief Valves and or Door Frames must not be activated (switched on) before the room is brought down to operating temperature.

Technical Resources:
Add to cart

FERMOD 2227 SER PRESSURE RELIEF VALVE FOR 75-150 PANEL

$139.89

The walls of a cold room are constantly subject to strains caused by pressure variations, either from inside or outside of the room. It is important to equalise the pressure when necessary otherwise the walls & ceiling are at risk of blowing out or in causing damage or possible injury.

A joint venture between CRH Australia & Fermod, The F2227 had been designed and manufactured to withstand Australia’s harsh ambient temperatures and metric panel thicknesses.

The F2227 Valve makes it possible to balance internal & external pressures through venting. It’s mechanically operated valves (one intake and the other exhaust) has two water tight mobile flaps. This means that when not required the cold room is still sealed without precious cold air leaking out of the room and causing machinery to run more often. When pressure builds up the valves open and allow equalisation.

The valve is fitted with an 8w heater which runs continuously and prevents the flaps from freezing.

It is important to note that the F2227 Valve is designed for?NEGATIVE?temperature cold rooms. if used for positive temperature cold room equalisation the heater should Not be connected to power.

Ensure to read the information in the Installation Instructions.

Draws 0.035 AMPs per Valve.

This product replaces CRH-500 & F2220TN Models

Color:?Surfmist White
Material:?Composite
Additional Information:
The only installation difference between the CRH-500 and the new Fermod Valve is that the new Valves only require an 80mm cut-out.
The newly designed F2227 will offer the same performance of the CRH-500 but with a smaller footprint and include design improvements including upgraded heater wires and a more ergonomic design allowing for quicker, more efficient install.
Draws 0.035 AMPs per Valve.
Technical Resources:
Add to cart

CRH SAFETY LATCH SET,16MM-32MM OFFSET

$377.42
CRH Safety Latch Set, 16mm-32mm Offset CRH & All manufacturers highly recommend that all internal safety release mechanisms fitted to doors are checked at least 3 times weekly to ensure they are functioning correctly. Includes glow in the dark inside release safety label.
Color:?Chrome Plated
Material:?High Pressure Die-Cast Zinc
Additional Information:
Set includes Latch body with padlocking provision. 16mm-32mm Adjustable Offset Strike. Internal Paddle type inside release, glow in the dark inside release safety label.
Add to cart

KASON 78 SERIES LATCH

$305.00

Kason 78 Series Radial Tongue Latch

  • Radial Tongue makes for effortless door closure.
  • A true self-closing door latch when combined with Kason Door Closers.
  • Padlocking provision is a standard feature and also allows the door to be opened from the inside to prevent entrapment.
Color:?Chrome Plated
Material:?Pressure Die-Cast Zinc
Additional Information:
Drilled & countersunk for 6mm screws.
Technical Resources:
Add to cart

KASON 1248 SERIES CAM-RISE SPRING ASSISTED HINGE 28MM OFFSET

$183.15

Kason 1248 Series Cam-Rise Spring Assisted Hinge – 28mm Offset

  • Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors.
  • Special high lift cam system outperforms similar spring hinges.
  • Cam-rise action reduces gasket wear, even with irregular floors.
  • Built in dwell holds door open beyond 120 degrees
  • Simple manual operation reverses hinges for left or right opening doors.
Color:?Chrome Plated
Material:?Pressure Die-Cast Zinc
Additional Information:
Drilled & Countersunk for 6mm screws.
Technical Resources:
Add to cart
