Nergeco T Enduro 2 Fast Acting Door
Fast-acting flexibility for oversized external openings
The T Enduro 2 has a focus on productivity, with a contemporary approach to traditional slow and heavy steel roller doors, using forward thinking technology to enhance worker safety within extreme weather conditions.
T Enduro 2
With the ability be to used across a multitude of applications, the rapid folding curtain design of the T Enduro 2 has the ability to externally protect your assets from the variable New Zealand weather conditions or internally maintain air pressure and insulate for temperature and sound.
Key Features
A step above the traditional heavy drum roller door, the sleek and innovative vertical folding curtain design of the T Enduro 2 is designed especially for New Zealand weather conditions and is suitable for oversized access up to 11m x 11m.
- Fast acting
With an average speed of 0.8 meters per second, the prompt functionality of the T Enduro 2 maintains zone separation while reducing energy consumption.
- All weather
Engineered to be windproof up to class 5, with clever wind distribution design. Optional enhanced insulation incorporates a double-layered air blanket to better maintain interior temperature.
- Reliable
Should an accidental impact occur, causing a stiffener to bend, there is no loss to production as the T Enduro 2 continues to function. - Safe
The soft bottom edge can be distorted both vertically and horizontally and is sensitive enough to reopen the door at the slightest impact while closing.
Key Specifications
T Enduro 2 curtains offer an exceptionally high standard of cleanliness coupled with impressive functionality.
- Rapid opening and closure of 0.8m/s
- Sleek, smooth and quiet design with a variety of colours to choose from
- Tight sealing to withstand high winds, with optional sealing kits available to further enhance pressure sealing to 40 Pa
- Auto reinsertion reduces repair costs following accidental impacts
- Smart and soft closure maintains user safety
- Guaranteed durability, withstanding tough New Zealand weather patterns
- Direct drive motor with proven reliability and enduring performance, avoiding the use of chains, reducing maintenance time and expense
- Panoramic anti-fatigue transparent windows are resistant to discolouration, enhancing long term visibility and safety
Enquire about the T Enduro 2
Increase access and productivity by speaking with one of our specialists today.
Tech Specs
MAXIMUM SIZE
11000mm W x 11000 mm H
SPEED
Up to 0.8m/s opening and closing for a standard door.
Actual speed depends on curtain size/dimensions.
CURTAIN
670 g/m² PVC. Stiffeners every 620 mm
Optional: insulated double skin curtain (U = 4.08 W/m².K)
STRUCTURE
Self-Supporting Steel Structure in 3 mm thick structural multifold steel shape, treated with a PP primer and a PU coloured finish.
MOTOR
Three-phase motor from 1.1 to 5.5 kW (depending on size and selected options)
Enclosure is transom opening from front as standard. Option to have open from the top.
CONTROL BOX
Control box up to 2m from door. Options available to be further away.
Crouzet PLC control panel.
Polyester IP65 rounded Nergeco control box (option to mount to the side guide) or IP66 500mm x 400mm, depending on configuration.
Optional box 500mm x 400mm in steel IP66 or stainless steel IP67.
SAFETY
Intelligent Curtain® with spiral cable (wireless optional) and 1 set of IP67 safety beams at 280 mmH
MANUAL OPERATION
In the event of a power failure.
Standard:
- Ratchet (up to max 5000mm height or width)
- Manual Counter-Balance (height and/or width over 5000mm)
Optional:
- Manual Counter-Balance (where not included as standard)
- Automatic Counter-Balance with Inverter & UPS
ACTIVATION OPTIONS
- Wireless push button
- Pull cord (wireless or bracket mounted)
- Magic switch
- Radar
- Remote transmitter
- Ground loop
- Detection photocells
POWER
Standard:
- 400V three-phase – 50 Hz – differential circuit breaker 300 mA
Optional:
- 230V three-phase – 50Hz
- 230V single-phase – 50 Hz (with frequency drive)
- 440V three-phase / 60 HZ
CURTAIN COLOURS (similar to - colour sample on demand)
- YELLOW RAL 1021
- ORANGE RAL 2008
- RED RAL 3002
- DARK BLUE RAL 5010
- DARK GREEN RAL 6026
- DUST GREY RAL 7037
- BROWN RAL 8017
- WHITE RAL 9010
- BEIGE RAL 1014
- LIGHT BLUE RAL 5015
- LIGHT GREEN RAL 6018
WINDOWS
Option: Panoramic transparent windows: 1 row / 2 rows / fully transparent
STRUCTURE COLOUR
- YELLOW RAL 1021
- ORANGE RAL 2008
- RED RAL 3002
- DARK BLUE RAL 5010
- DARK GREEN RAL 6026
- DUST GREY RAL 7037
- BROWN RAL 8017
- WHITE RAL 9010
- BEIGE RAL 1014
- LIGHT BLUE RAL 5015
- LIGHT GREEN RAL 6018
OTHER
Wind resistance up to class 5 (depending on dimensions)

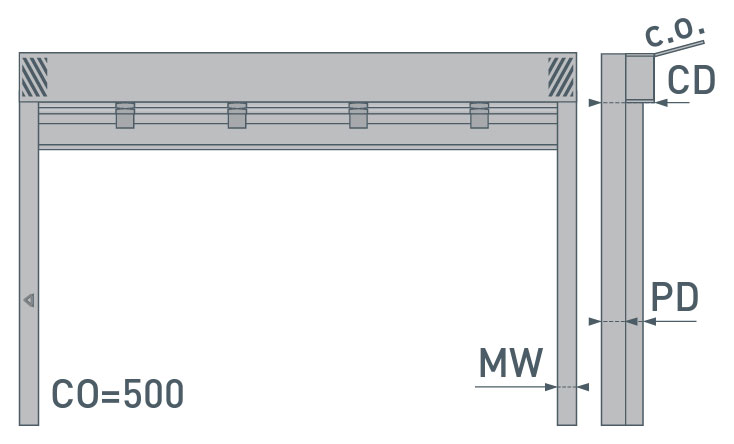

LAYOUT DIMENSIONS
| Open | H+* | W+ | CD | PDRatchet | PDCW | WM |
| 2.000 | 810 | 300 | 630 | 350 | 500 | 150 |
| 2.500 | 860 | 300 | 630 | 350 | 500 | 150 |
| 3.000 | 910 | 300 | 630 | 350 | 500 | 150 |
| 3.500 | 960 | 300 | 630 | 350 | 500 | 150 |
| 4.000 | 1.060 | 300 | 630 | 350 | 500 | 150 |
| 4.500 | 1.110 | 300 | 630 | 350 | 500 | 150 |
| 5.000 | 1.160 | 300 | 730 | 450 | 600 | 150 |
| 5.500 | 1.160 | 300 | 750 | X | 600 | 150 |
| 6.000 | 1.210 | 300 | 750 | X | 600 | 150 |
| 6.500 | 1.310 | 300 | 750 | X | 600 | 150 |
| 7.000 | 1.360 | 300 | 750 | X | 600 | 150 |
| 7.500 | 1.410 | 300 | 800 | X | 670 | 220 |
| 8.000 | 1.460 | 440 | 800 | X | 670 | 220 |
| 8.500 | 1.510 | 440 | 800 | X | 670 | 220 |
| 9.000 | 1.610 | 440 | 800 | X | 670 | 220 |
| 9.500 | 1.660 | 440 | 800 | X | 670 | 220 |
| 10.000 | 1.710 | 440 | 800 | X | 670 | 220 |
| 10.500 | 1.760 | 440 | 800 | X | 670 | 220 |
| 11.000 | 1.810 | 440 | 800 | X | 670 | 220 |
Manufacturing Quality
AceDoors partnered with Nergeco 30 years ago who have 35 years of skillful experience and success with the high-performance doors adapted to each trade, each process, and each building in more than 90 countries worldwide.
Manufactured in France
All our T Enduro 2 doors are made and manufactured in France and are supplied and managed by AceDoors NZ. With your needs in mind, we have the agility and experience to deliver an exceptional product at a competitive rate with outstanding service.
