FireSlide – Fire Sliding Doors
Automatic fail-safe sliding fire doors
Automatic fail-safe sliding fire doors
FireSlide – Fire Sliding Doors
Typically used in warehouses and factories, the doors can be manufactured with facings of 1.0mm steel sheet or 4mm fire retardant plywood. The FireSlide is rated for up to 4 hours integrity and 120 minutes insulation (-/240/120) into Concrete or Masonry walls.
Maximum Height is 5.0mm. Maximum door leaf area cannot exceed 30 sqm.
Key specifications
The FireSlide automatic fail-safe sliding fire doors will close when activated by a fusible link or fire signal.
The FireSlide sliding doors are tested and approved to in accordance with Australian Standard 1530, Part 4, 1990 and British Standard 476, Part 22, 1987.
- Facings from steel sheet or fire retardant plywood
- Steel channels fitted to the perimeter to protect the door edges
- Available with single sliding leaf or biparting leaves
- Opened manually

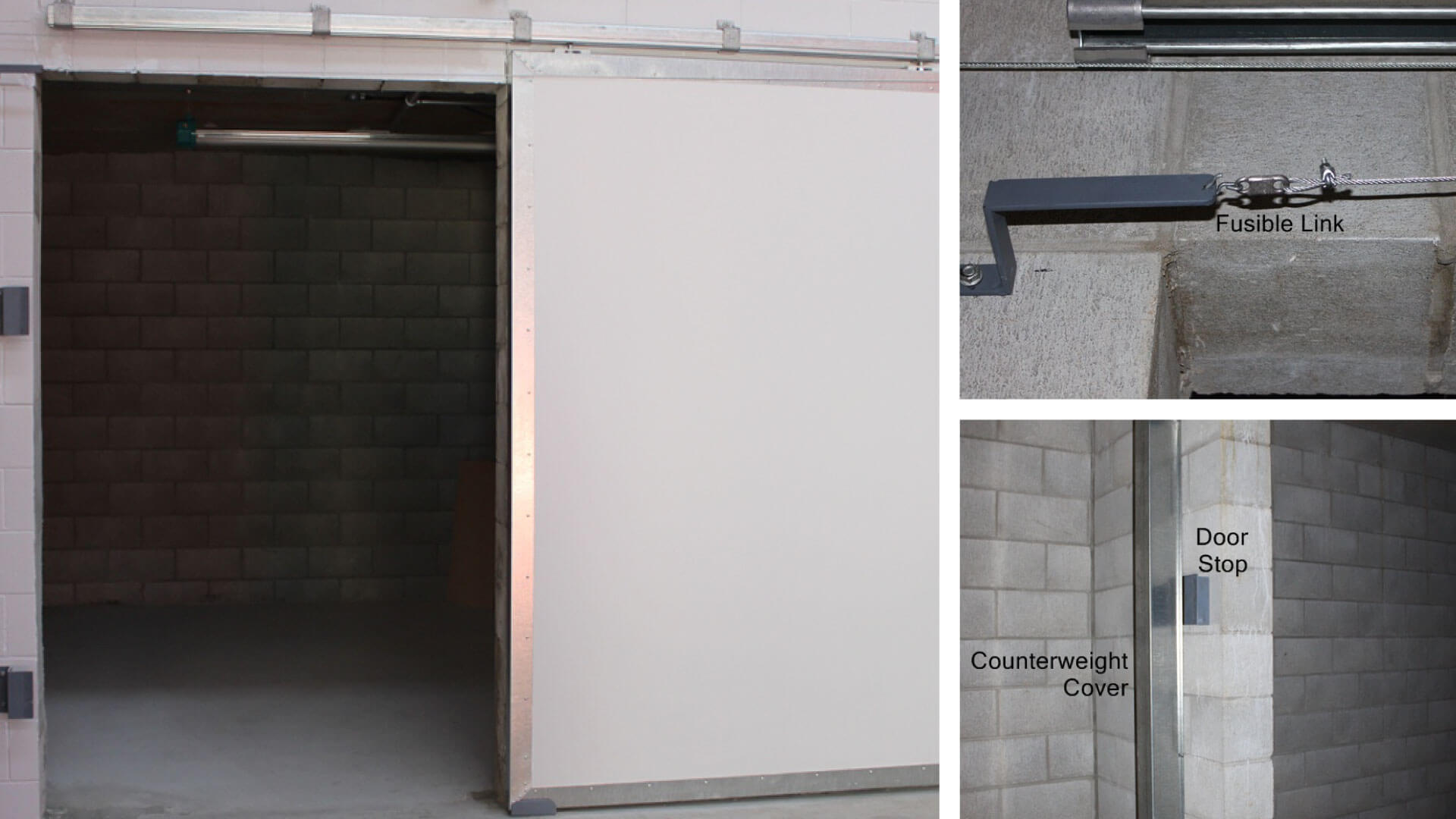

- Close manually by fusible link or from fire alarm signal using failsafe counterweight and pulley system
- Door leaf overlaps the top and side of the opening by 75mm, 10mm clearance between the door leaf and floor
Enquire about FireSlide – Fire Sliding Doors
Interested in using our FireSlide – Fire Sliding Doors for your next project? Talk to one of our specialists today to discuss how we can customise your site.
