AlumaView 175, 200 & 300
We’ve got it covered for your
next project
Reliably and durably built to withstand the busyness of today and the unknowns of tomorrow
Glazed or Solid Panels
Customisable Track
NZ Sourced Motors
Available Colours:
Cream
Black
Extra Dark Bronze
Dark Bronze
Medium Bronze
Light Bronze
Champagne
Aluminium Sectional Doors
The Raynor AV175, AV200 & AV300 are the benchmark for commercial doors, providing reliability and durability to meet, or exceed, the requirements of daily use. With 25.4mm – 19.05mm thick door sections and streamlined rail construction, the AlumaView Doors are engineered for lasting beauty and durability.
This benchmark commercial door provides Raynor reliability and durability to meet, or exceed, the requirements of daily use. With 1-3/4″ thick door sections and streamlined rail construction, the Raynor AlumaView AV175 door is engineered for long lasting beauty and durability.
AV200
Designed for peak performance and strength, this 2″ thick door is available in larger sizes and features bold rail construction for maximum durability, reliability and beauty. Build your door with ThermaXPS™ insulation for increased thermal performance.
AV300
A full 3″ thick, the Raynor AV300 is the sturdiest door in the AlumaView family. The increased thickness adds durability. With the incorporation of the U-bar trussing inside the rails, you can have added strength without sacrificing your view.
Enquire about AlumaView
Interested about using the AlumaView Door for your next project? Talk to one of our Specialists today.
Key Features
AlumaView aluminium sectional rail and stile doors are available with numerous features and options, including those listed below.
Integral U-Bar
Integral U-Bar construction within the rails creates added strength to the section panels. It also provides a clean look on the interior of the door by removing trussing obstructions from visible areas. Only available with the AV300.
Years of Durability
AlumaView door sections are clear-anodized for maximum durability and are designed to withstand minimum wind loads of between 15 p.s.f (AV175) and 20 p.s.f (AV200 & AV300).
Rugged Hardware and Springs
The AlumaView door comes packaged with the right combination of hardware, track, and springs to match your door’s size and application.
Decreased Energy Costs
AlumaView doors help you reduce energy costs with a U-shaped, vinyl bottom weatherseal secured by a sturdy aluminium retainer.
Snap-in Retainer
AlumaView panels and glass are sealed and held in place with a snap-in retainer.
Clear anodized, RAL9003, RAL 9016, and standard white doors use grey snap-ins. All other doors use black snap-ins.
Customized Track*
Track systems are supplied to fit special clearances, inclines or contour applications. Hardware and track systems can be customized to fit any need. Additional trussing is available for special wind loading applications. A QuikClip™ pre-assembled track option is also available.
*Some options may be limited to door size or model.

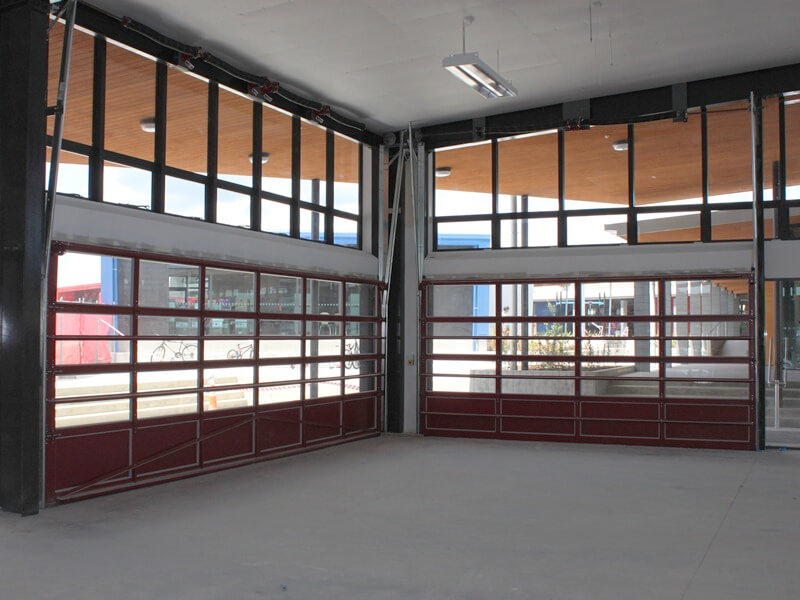

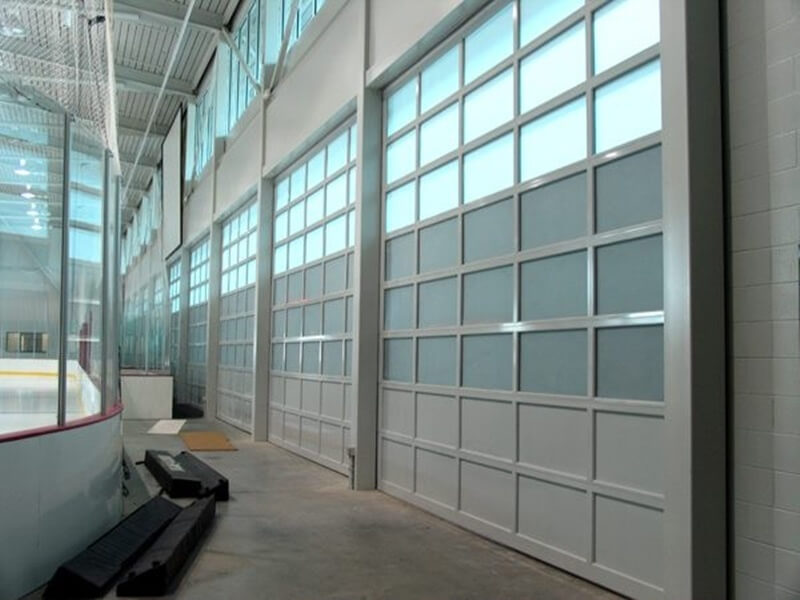

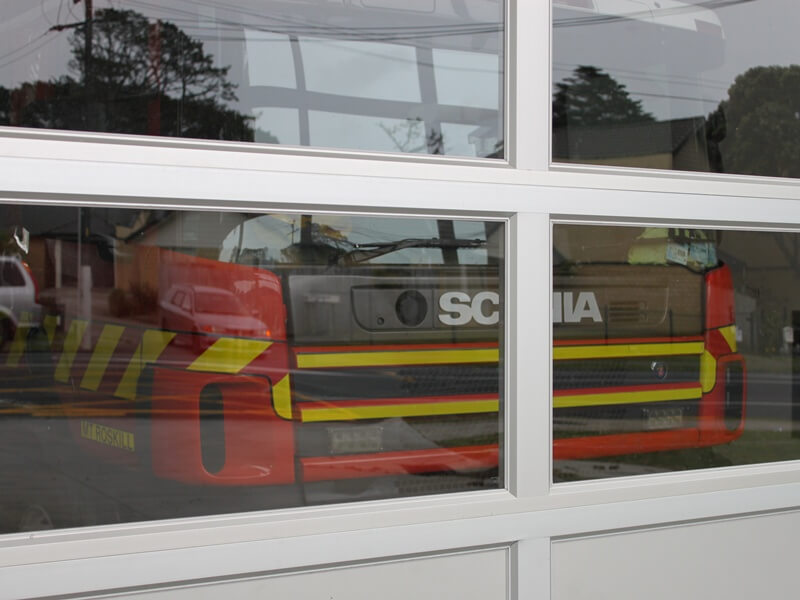

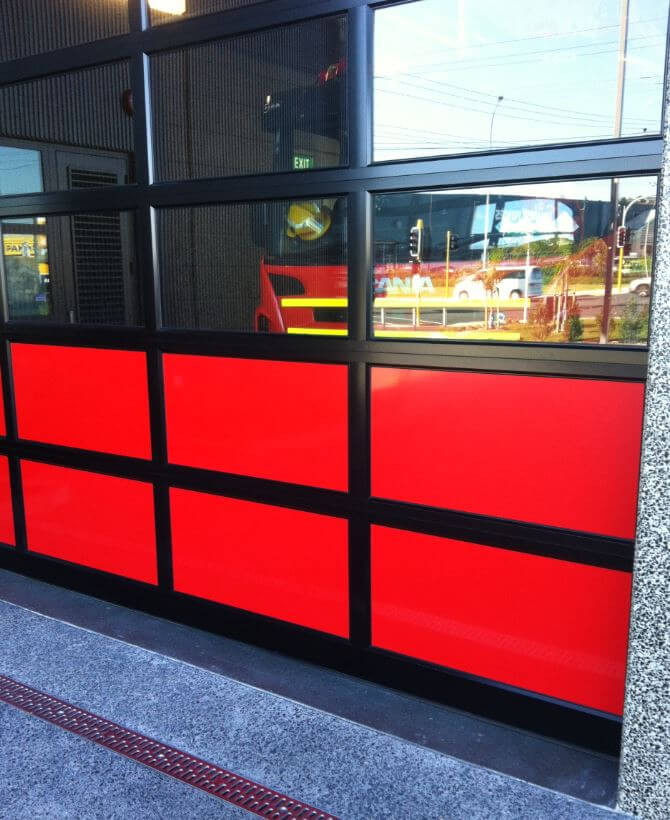

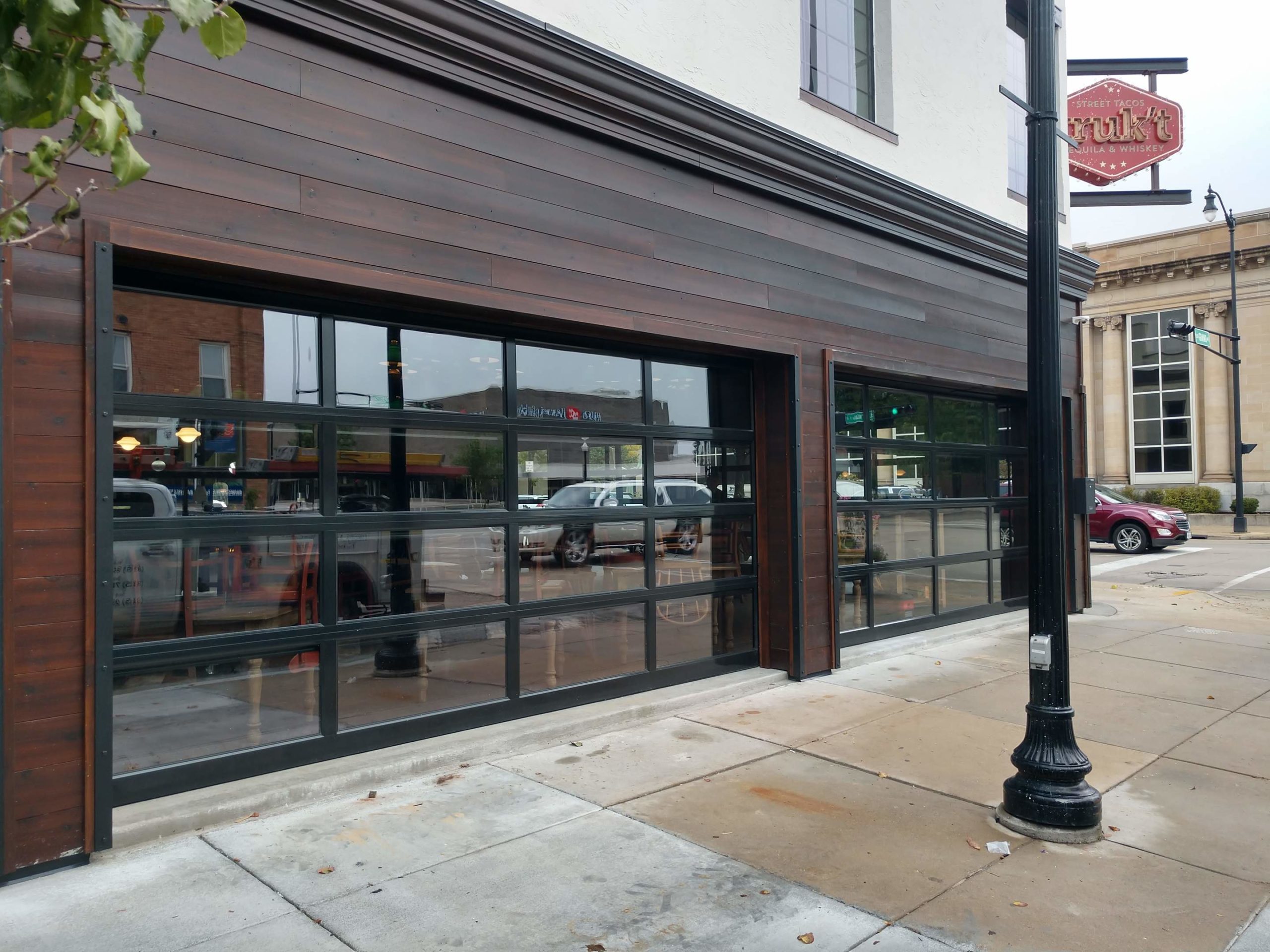

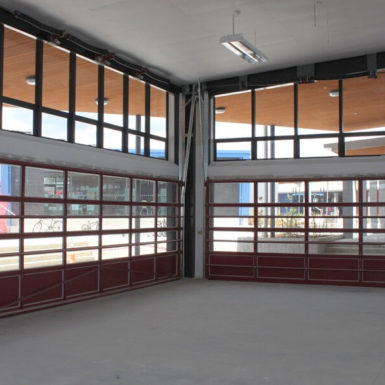

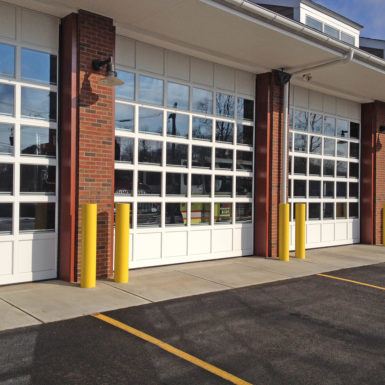

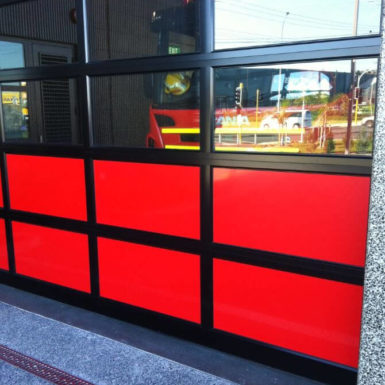

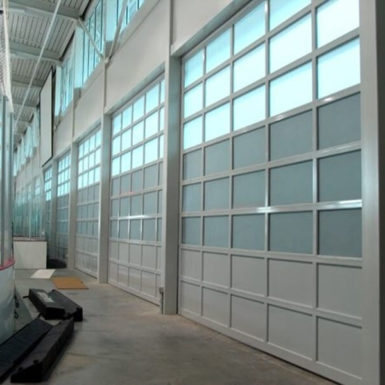

AlumaView Gallery
Tech Specs
Door
Type
Commercial Sectional Doors
Model
AlumaView AV175, 200 & 300
Power
Ditec mainly D0D14 model
Counterbalance System
Type
Torsion Spring, Tandem Shaft Torsion, or Weight Counterbalance
Springs
Spring Inner Diameter: 2.5″, 3.5″ or 5.5″; Duplex or High Cycle (30K, 50K, 100K); Optional Black Powder Coat
Shafts
Tube (13-Gauge) or Solid (D-Shaft, 25.4mm Keyed
Hardware/Accessories
Hinges
11, 13, 14-Gauge or Hybrid
Rollers
Standard (50mm or 76mm) or Heavy Duty (50mm or 76mm)
Finish
Galvanized or Optional White Powder Coat
Lock
Interior Slide Lock or Exterior Lock Bars. Available as an additional upgrade.
Seal(s)
Jamb Seal
Hanger Angle
11, 13-Gauge Galvanized or 13-Gauge White Powder Coated
Track
Gauge
13 and 16-Gauge
Size
50.8mm or 76.2mm
Finish
Galvanized or Optional White Powder Coat
Type
Normal Headroom, Rear Mount Low Headroom, Front Mount Low Headroom, Lift Clearance, Vertical Lift, Incline, Contour, and QuikClip™ Pre-Assembled Track Options
Clear Anodized or Optional: ArmorBrite Powder Coat System 188 custom colors available, or Bronze Anodized, Black Anodized.
Panel Configuration
N/A
Trussing
Material: Optional U-bar (18-Gauge or 20-Gauge – can have up to 1 U-bar per door)
Seals
Bottom Seal (76mm, 101mm Gray; 76mm Yellow; or 76mm Black EPDM), Optional EPDM Header Seal
Section – AV175
Material
1-3/4 inches (44 mm) thick, 6063-T6 aluminium alloy stiles and rails joined together with 5/16 inch (8 mm) diameter screws
Aluminium panels
0.050 inch (1.3 mm) thick or glazing (when specified) fill the spaces between stiles and rails. Combined dimension of two adjoining intermediate meeting rails 3-1/4 inches (83 mm)
Bottom rail height
5-3/16 inches (132 mm)
Top rail height
5-3/16 inches (132 mm)
End stiles
3-3/8 inches (86 mm) or 6-1/2 inches (165 mm) wide as determined by overall door width
2 inches (51 mm) thick, 6063-T6 aluminium alloy stiles and rails joined together with 5/16 inch (8 mm) diameter screws.
Aluminium panels
0.050 inch (1.3 mm) thick or glazing (when specified) fill the spaces between stiles and rails. Combined dimension of two adjoining intermediate meeting rails 3-13/16 inches (97 mm)
Bottom rail height
5-1/4 inches (133 mm)
Top rail height
5-1/4 inches (133 mm)
End stiles
3-3/8 inches (86 mm) or 6-1/2 inches (165 mm) wide as determined by overall door width
Centre stiles
3-5/8 inches (92 mm) wide
Section – AV300
Material
3 inches (76 mm) thick, 6063-T6 aluminium alloy stiles and rails joined together with 5/16 inch (8 mm) diameter screws.
Aluminium panels
0.050 inch (1.3 mm) thick or glazing (when specified) fill the spaces between stiles and rails. Combined dimension of two adjoining intermediate meeting rails 5-1/2 inches (140 mm).
Bottom rail height
6-1/2 inches (165 mm)
Top rail height
6-1/2 inches (165 mm)
End stiles
3-5/16 inches (89 mm) or 6-1/2 inches (165 mm) wide as determined by overall door width
Every AlumaView door comes with a couple of extra options. Why? Because no business or building is exactly the same. So, we give you the choice when it comes to picking what fits – what doesn’t, and what’s going to be the most in keeping with your exterior and building must-haves.
SleekSightline™
Our AV200 and AV300 models offer a sleek 1-pane or trendy 2-pane glass layout. These new glass layouts are available now and vary depending on glass type and door size.
Choice of Windows
For maximum design flexibility, choose from tempered, tinted, double-stregth, insulated, acrylic, polycarbonate or impact-resistant glass in a variety of thicknesses.
EnduraCote™
The Raynor EnduraCote hardware system comes with springs, track, and hardware that are powder coated to provide a clean, finished look and maximum protection against rust.
Aluminium Panels
For busy work environments and to prevent glass breakage, aluminium panels protect your investment. Choose from impact-resistant and insulated panels as well.
Anodized Finishes
Choose from six custom anodize finishes including champagne, light bronze, medium bronze, dark bronze, extra dark bronze, or black.
We all enjoy an upgrade – and so do our doors! The AlumaView Door comes with a range of additional add-ons to greater protect, seal and serve.
Rail & Stile Insulation
ThermaXPS™ insulation fills the AV200 rails and stiles to boast an R-value of 4.31**. This closed cell insulation has minimal water absorption and prevents mold and mildew. Combine the ThermaXPS, along with our other energy saving door features, and you will have a top-notch thermal solution.
**10×10 door built with both double endstiles and ½” insulated Low-E Glass.
Header Seal
Flexible vinyl flap header seal reduces air infiltration and energy costs by sealing the top of the door against the header.
Locks
In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in both inside and outside variations.
Carbon Monoxide Vent
Allows you to channel fumes to the outside when the AlumaView door is closed. Available in a variety of sizes.
Jamb Seal
EPDM rubber jamb seal also helps to reduce air infiltration and decrease energy costs by sealing the side of the door when closed.
High-cycle Counterbalance System
For reliable operation in high-traffic areas, choose high-cycle torsion springs with 25,000, 50,000, or 100,000-cycle life. For reduced maintenance and ultra-smooth operation in heavy-use applications, choose a weight counterbalance system.
