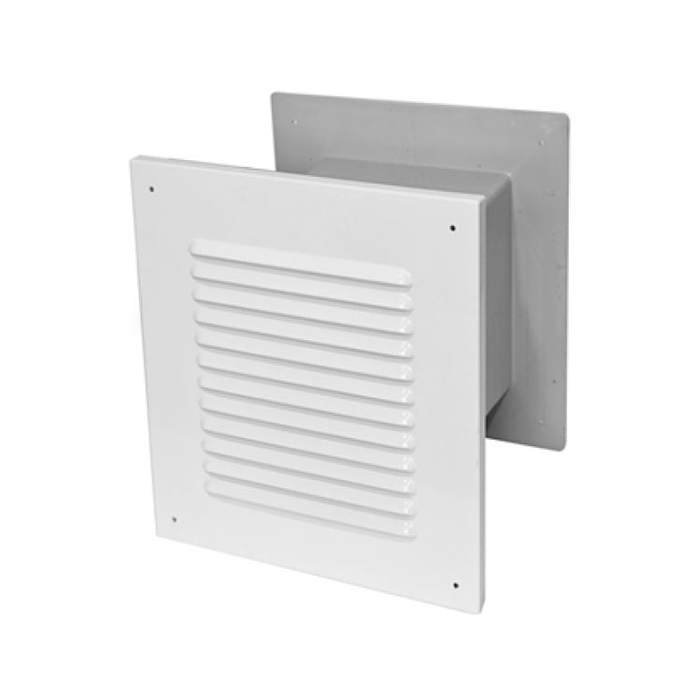

PRESSURE RELIEF VALVE 300X300- FOR 150MM WT WITH 2 VERMIN SCREENS

$521.81

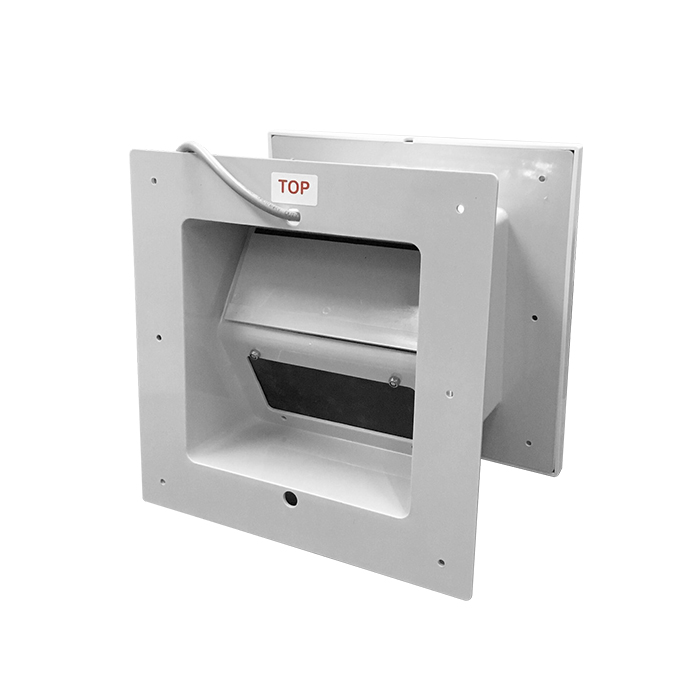

The CRH-1000-150 is a heated, mechanically operated valve with 2 sealing  flaps allowing airflow in either direction. The heating element is a 49W/m self regulating heater cable 240v with 0.230 AMP draw. With a 3-core neutral, active & earth facility. Supplied with 2 Vermin Screens and fixing screws.

  • Material: Polycarbonate

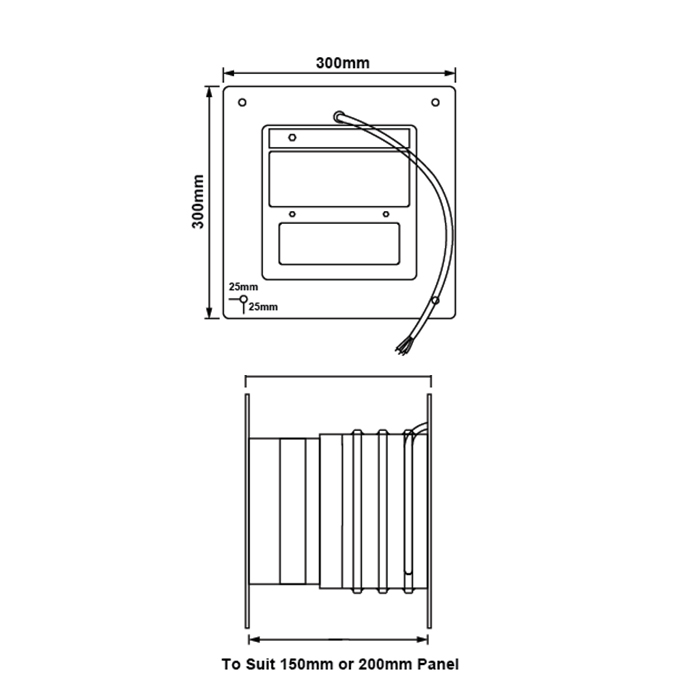

  • Flange Size: 300mm x 300mm
  • Cutout Size: 220mm x 220mm
  • Panel Thickness: 150mm
Additional Information:

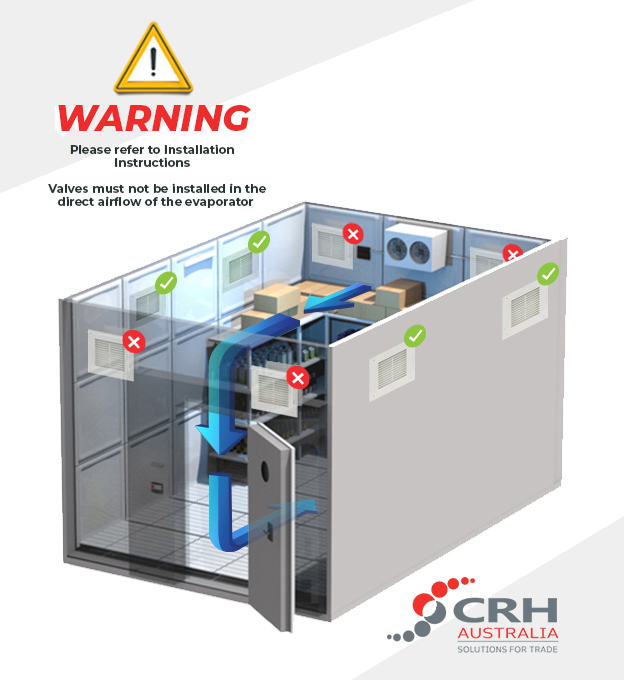

Please Note: Heaters for Pressure Relief Valves and or Door Frames must not be activated (switched on) before the room is brought down to operating temperature.

Technical Resources:
Categories: , SKU: CRH-1000-150 Tag:

Description

Youtube Video:
