Product Info

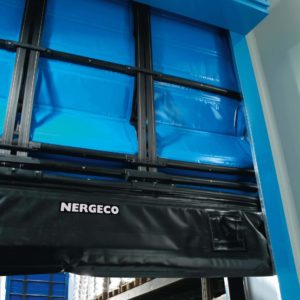

C FREEZER 2 – Productivity door for Cold storage – designed to separate negative temperature areas from positive controlled areas

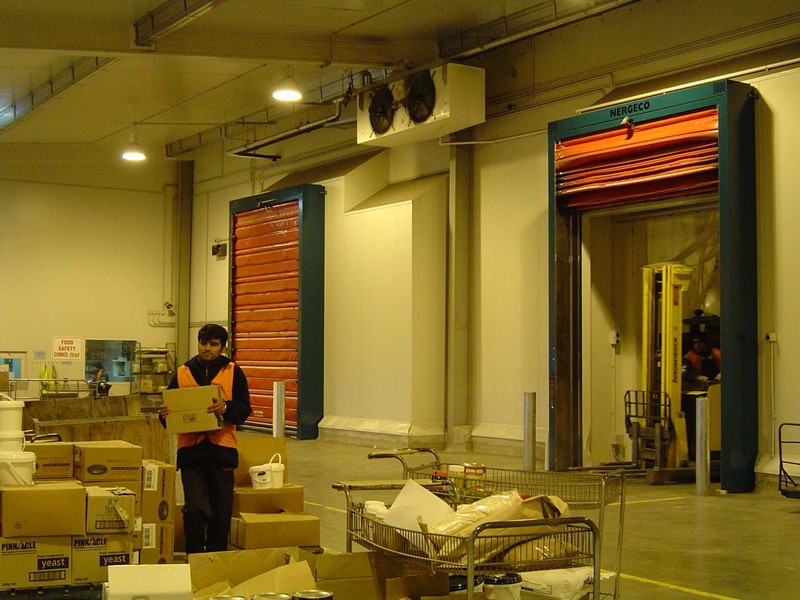

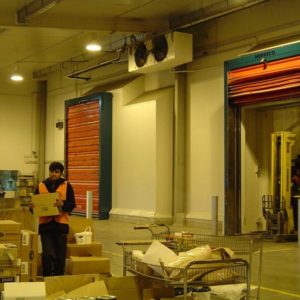

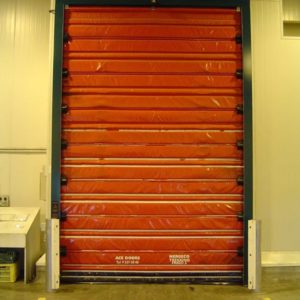

The C Freezer 2 high-speed productivity door has a self-supporting, corrosion-resistant epoxy coated steel frame. Designed to be used between deep-freeze and chilled areas. The Frigo 3 has an average speed of 0.8m per second (both up and down) which helps maintain separation and reduces energy consumption.

The unique 3 layer insulated vertical folding design, featuring heated side guides and top header with full perimeter sealing, uses straps to pull the curtain from the floor up without rolling it around a drum. This leaves only soft, flexible curtain folds exposed to impacts rather than rigid bottom bars like other high-speed doors.

Product Features

  • Fast acting insulated vertical folding fabric door, for clear openings up to 3.5m by 4.5m
  • Flexible, 3 layer, insulated vertical stacking curtain, reinforced sealed welds
  • Self supporting, corrosion resistant, epoxy coated steel frame is standard
  • Optional stainless steel frames are available – call for information
  • Flexible, patented soft bottom edge with superior sealing
  • Opening and closing speed is 0.8m per second, allowing unimpeded traffic flow
  • Patented vertical 3 layer insulated fold up design leaves no stiffeners at bottom of curtain throughout the opening and closing cycle
  • Roll and motor covers are integral to door design
  • The door is factory pre-wired and the standard, PLC controlled, IP65 control panel that is EC approved.
