SpiraDoor – The Industrial Door of Now

Insulated, fast and secure, one door for all

Panel it out

SpiraDoor utilises a split assembly structure, composed of broken aluminium alloy door panels. Panelling incorporates multi-layer sealing strips, nylon guide wheels and hinges to aid load bearing. An extended flexible seal closes the gap between door and ground. The 43mm aluminium alloy thermal insulation door panel features an anodised and coloured surface. Wind load resistance can reach Force 12, Class 3 (120kmph). Slats available in White (RAL 9010) or Silver (RAL9006), with a three-vision panel option.



Stay on track

SpiraDoor tracks are crafted from 2.5mm bent galvanised steel, and equipped with tension spring balancing and a chain transmission system for smooth operation. High-quality aluminium allows guide wheel tracks to keep noise to a minimum and enhance durability. The side features include sealing strips for effective dust screening, cold air isolation and pest control. Doors include a brake release handle for emergency opening.



Time to roll

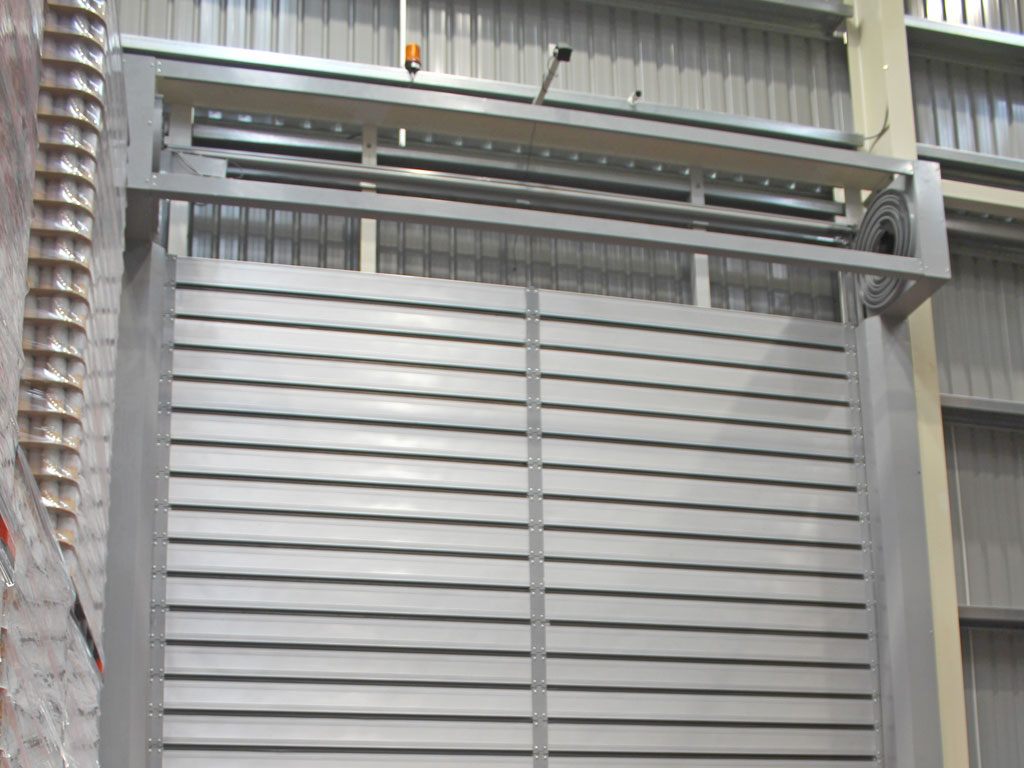

The sectional SpiraDoor rolls up into the spiral cage, this means…

  • A clean appearance
  • No contact between the spiral and door panel
  • Improved longevity

All systems go

The SpiraDoor’s standard electronic control system encompasses a servo motor and control box, with right or left side door location. An optional upgrade to SEW Eurodrive (German) heavy duty motor is ideal for large, heavy doors and higher use applications. The control box features an easy-operate display screen, providing current status information and all-important technical parameters. It’s also compatible with any external
electric device – radars, loops, remotes, sensors, and safety systems – light curtain, flashing lights and traffic lights, and in-keeping with other door control systems – airlock/ interlock. Additionally, the system stores all operational and maintenance data.



Safely does it

Infrared safety protection sensors – multiple horizontal infrared photoeyes within the door frame. A wireless safety edge system affords safer operations…

  • The door remains open when an obstacle is underneath.
  • When an object passes a clear opening, the door moves to open
    position and closes when obstacle free.
  • If the door closes on an object, it immediately stops and reverts back
    to opening position, protecting the object beneath it.
  • Application
    Internal / External
  • Size*
    Maximum Width: 6500’
    Maximum Height: 6000’
  • Speed
    Maximum Opening Speed: 2.5m/sec
    Maximum Closing Speed: .6m/sec
  • Colour
    Standard: Silver (RAL 9006) or White (RAL 9010)
  • Wind Loading
    Up to: class 12 (120 kmph)
  • Thermal Insulation
    K≤l 5W/(m²·K)
  • Slats
    Material: Polyurethene Slat
    Thickness: 43mm
    Finishing: Anodising & Organic Colouring
  • Motorisation
    Motor: Single Phase / 3 Phase Motor Drive
    Motor Position: Left Hand / Right Hand
    Control Pane: IP54 rated metal control box with inverter frequency controller
    Control Mount: Left Hand / Right Hand
    Power Supply: 240 / 400v
  • Standard Operational Included
    Safety:
    – Multiple Horizontal Infrared Photoeyes
    – Variable Speed Control
    – Encoder Control
    – 12 months / 6 Monthly Preventative Maintenance Programme
  • Counter Weight
    Systems: Spring and Chain Balancing
  • Extra Add Ons (Optional)
    Safety: Widescan LZR Radar with Warning Lights
    Mounting Options: LH/RH
    Vision Panels: Up to 3 rows
    Bottom Bar: Extra Heavy Duty
    Actuation: Loops, Remotes, Radar, Etc…
    Interlock System: Interlock to other doors



* For larger size doors please inquire
