Product Info

Bollards & Downpipe Protectors

Contact us with your bollard and downpipe protector requirements.

Products Features

Bollards:

  • Made to suit your requirements
  • Standard height 1100mm. Other heights available on request
  • Powdercoated Safety Yellow or to other colour requirements
  • Standard 250mm x 250mm x 16mm base plate
  • 165mm diameter pipe with 4mm wall thickness
  • Prepared with grey etch primer

Downpipe Protectors:

  • Made to measure – dimensions to suit
  • From 3mm thick galvanised steel
  • Standard galvanised finish or powdercoated to colour requirements

Case Study

Acedoors Delivers with Flexibility, Bespoke Made to Design Products, Reasonable Cost, Wide Product Range

HUSHSHUTTERS, DURADOORS, DOWNPIPE PROTECTORS, BOLLARDS SUPPLIED AND INSTALLED BY ACEDOORS

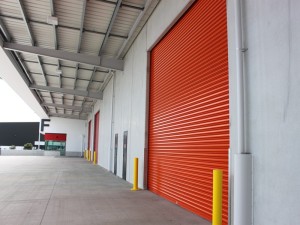

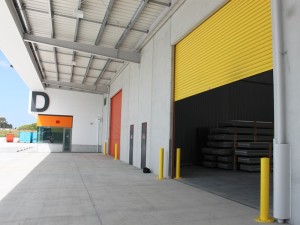

Acedoors worked closely with Haydn & Rollett Construction to manufacture and install a range of product at the AIAL Company development at Percival Gull.

The architect had detailed specific non-standard designs for this development.

Hushshutters, Duradoors, Bollards and Downpipe Protectors were all manufactured in accordance with the architect’s specifications and design.
Acedoors flexible “one-stop-shop” approach came to the fore in this project. This project displays the ability to manufacture non-standard product at reasonable cost, providing the advantages of dealing with only sub-contractor.

Product supplied and installed by Acedoors Ltd:-

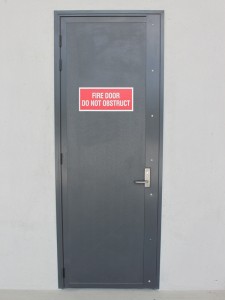

  1. 20 Duradoors complete with anti-jemmy bars. The anti-jemmy bars dimensions were made to the drawings provided.

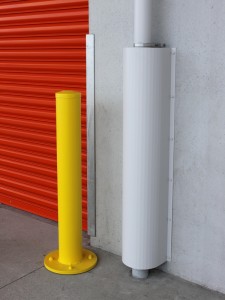

  2. 22 Downpipe Protectors were made to the clearances provided around the pipe. These were site measured and made to suit.
  3. 12 Hushshutters were manufactured and installed.
  4. 48 Bollards were manufactured with 20mm base plates (standard is 16mm).
